Ths image is for illustration purposes only and may not reflect standard inclusions
KATE 130
Starting From $58,950.00 to lock-up stage
DESCRIPTION

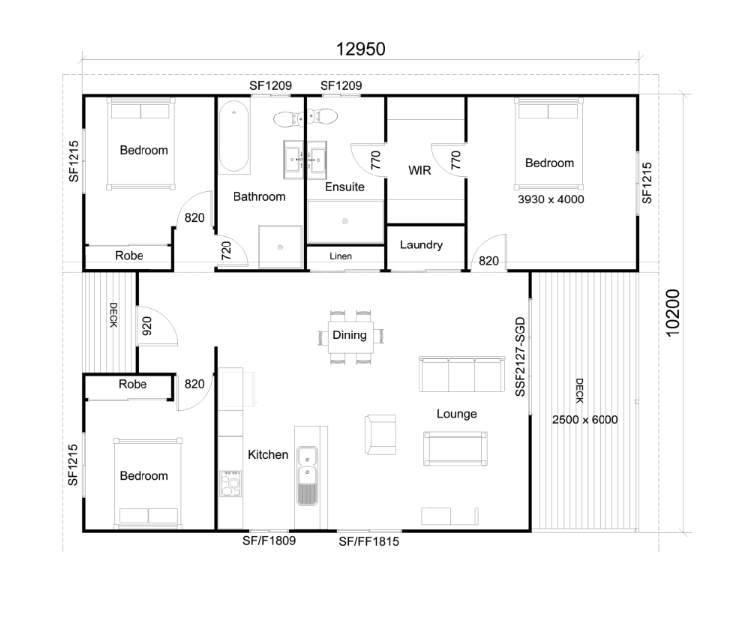

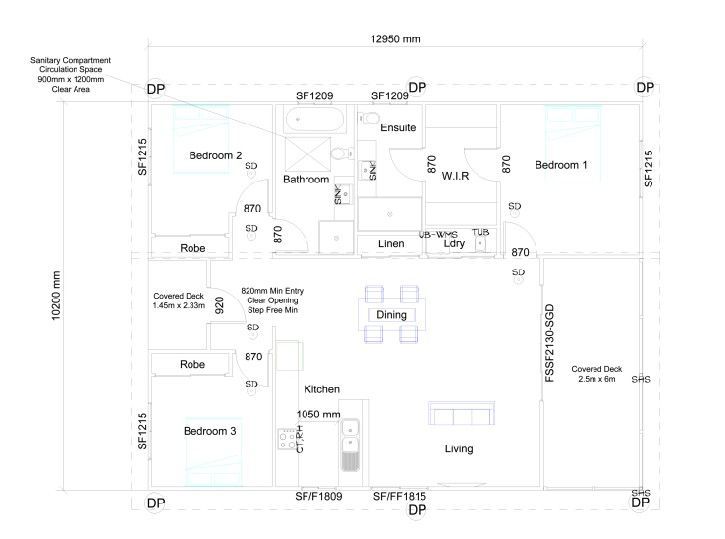

The Kate 130 design is an open plan design with beautifully incorporated outdoor decks. Featuring an open plan kitchen and walk in robe in master. This design has lots of street appeal with a beautiful front porch and rear deck.
Steel Chassis Floor system
available from $22,990 plus posts if required
Gal Steel Floor System Inclusions
Steel Bearers (incl deck) Yellow Tongue
Steel Joists (incl deck) - FC Tile Underlay (wet Areas)
Optional Extras
Steel Posts with Top & Bottom Brackets
*Prices based on Lock up Components, 90mm Steel Wall Frames and Trusses, 2550mm ceilings,
GET A QUOTE
Lock-Up Stage Inclusions
N3 Wind Rating
Fastener Kit
2.55m Ceilings
Deck Roof
Roof Battens
Ceiling Battens
90mm Pre Assembled Steel Wall Frames
90mm Pre Assembled Steel
Roof Trusses
Sliding Glass Windows as per plan
Sliding Glass Doors as per plan
CGI Roof Sheets
Fascia & Gutters
Horizontal CGI Wall Sheets & Trims
Optional Extras
HardiePlank 230mm Wide FC Weatherboard in smooth or woodgrain finish is available
Engineering Certificate (Form 15 ) is available
*Bluescope Colorbond CGI Roof & Wall Sheets are standard
